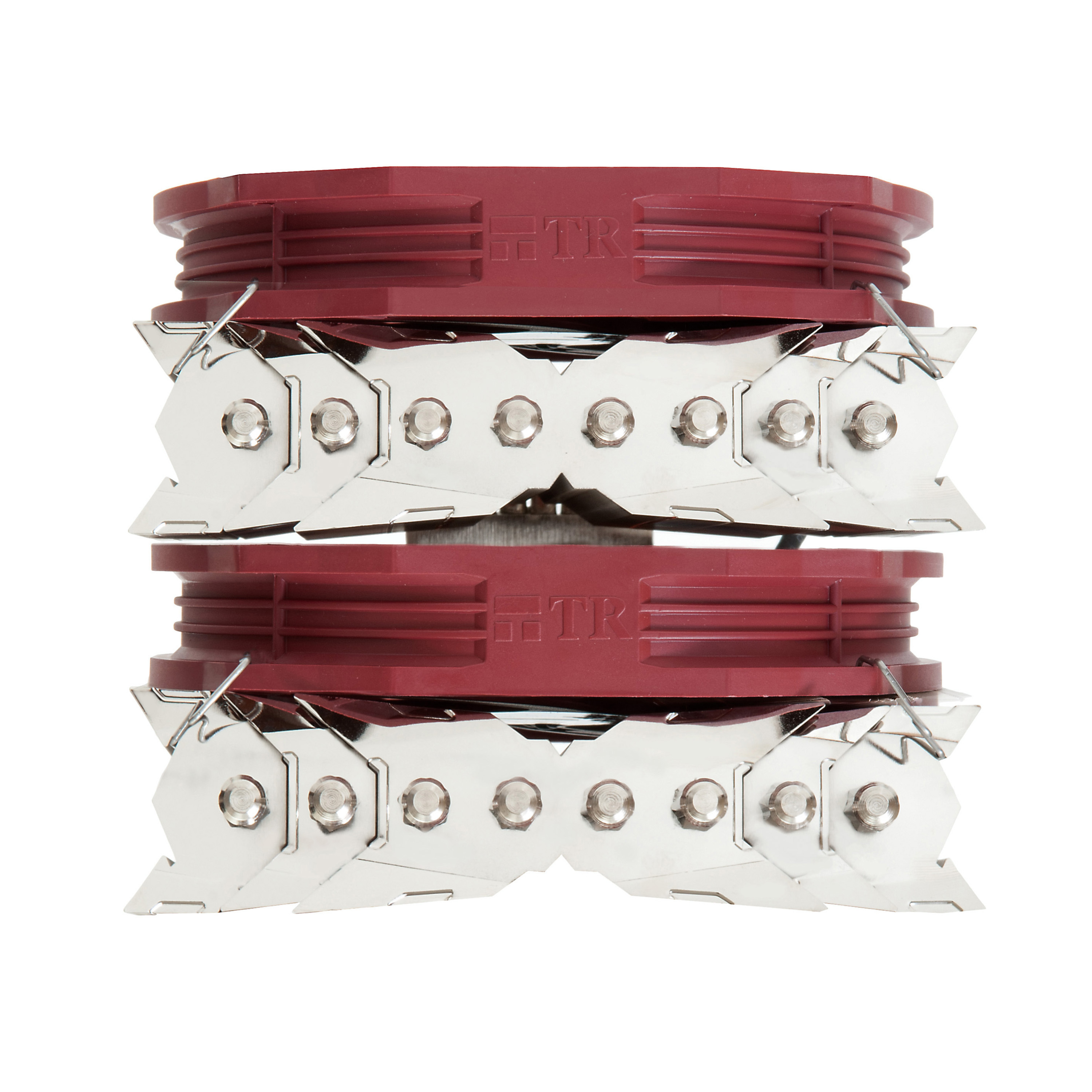

SilverArrow SB-E Extreme

Special features:

8 X 6mm sintered heat-pipes effectively takes  away excessive heat from the CPU when overclocked, Nickel Plated heat-pipes, slower Oxidation and deterioration of the heat-pipes, provides longer period of Thermal conductivity.

Each side with 154mm*120mm heat dissipation area, can be used with 14 or 15 cm fan ( fan clips included).

Special Arrow fin design, which allows cool air to pass through and take heat away rapidly, effectively provide cooling for the cpu.

Support Multiple-Platforms. Can be used on Socket 775/1150/1151/1155/1156/1366/2011/2011-3 Platform, and AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+ Sockets.

Including two TY-143 Ultra low noise PWM fans and PWM Y-Cable. With the compatibility of up to 3 fans maximum.

*The TY Series Fan can be pluged into the 3 pin; you can tell from the jack, there is fool-proof design on the jack so wrong installation of the pins are avoided.
*This fan is designed with PWM function, so full speed  will apply when pluged into 3 pins instead of 4 pins .

StumbleUponEmail
Category:

Product Description

Technical Spec :
Silver Arrow SB-E Extreme

Heatsink Specifications:
Dimension: L154 mm x W103 mm x H165 mm
Weight: 750g
Heat pipes: 6mm heatpipe x 8 units
Fin: T = 0.3 mm ; Gap = 2.1 mm
Fin Pcs: 10 + 12 + 80 = 102 pcs
Copper Base: C1100 Pure copper nickel plated
Motherboard to Fin:30 + 8 = 38 mm, 38 + 8 = 46 mm, 45 + 8 = 53 mm

TY-143 FAN Spec
Dimension: L152 mm x W140 mm x H26.5 mm
Weight: 170g
Rated Speed: 600~2500RPM (PWM controlled)
Noise Level: 21~45dBA
Air Flow: 31.4~130CFM
Connector: 4 Pin (PWM Fan connector)

Thermal design power: 320watt
