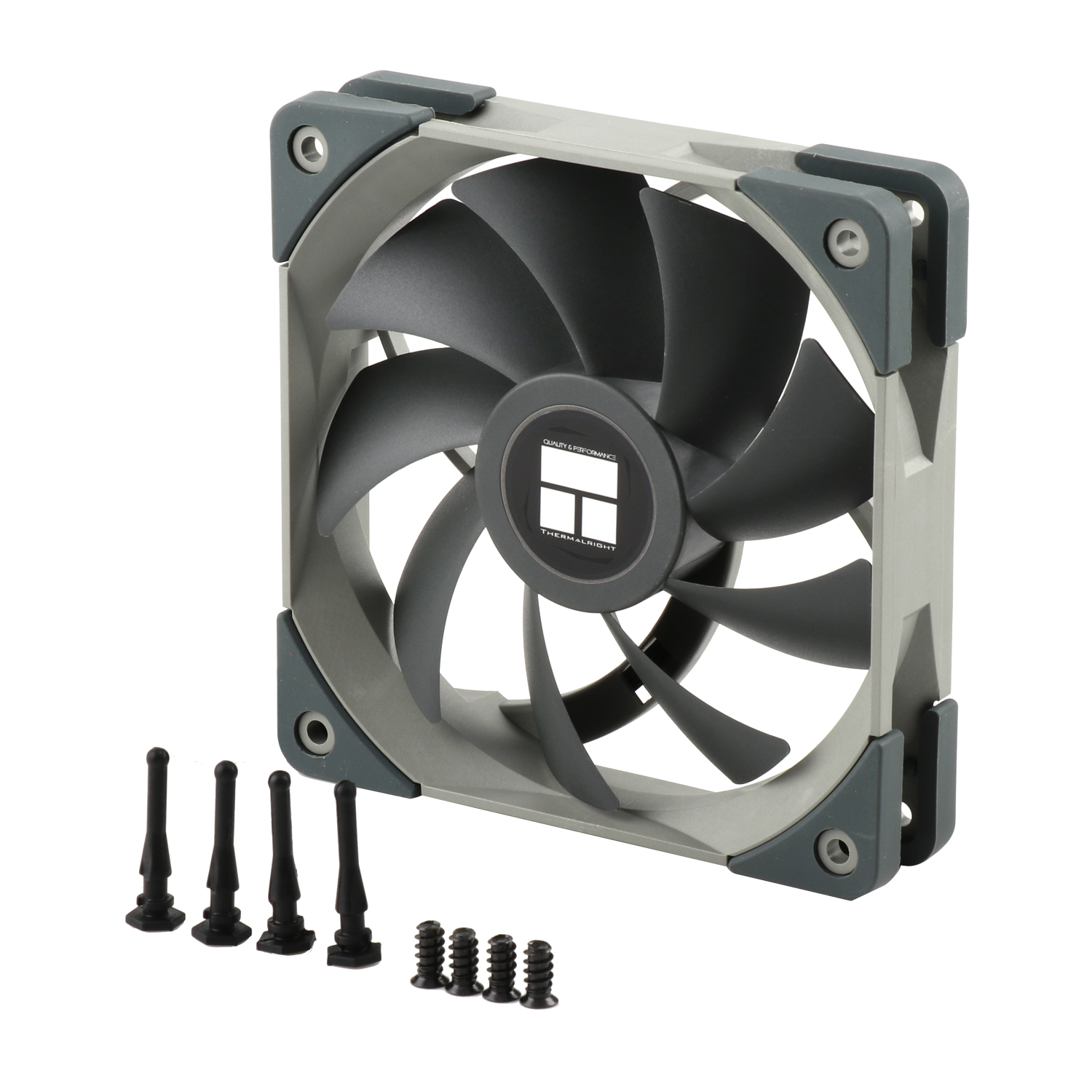

TL-C12

THERMALRIGHT TL-C12 series is the latest independent design of 120mm PWM fan, THERMALRIGHT special blade is composed of nine pieces carefully designed, designed for high-speed air transport and performance balance efficiency.

The FDB (Fluid Dynamic Bearing) design allows the TL to last up to 60,000 hours thanks to the latest shock pad and significantly reduces noise frequency to ensure quiet operation.

StumbleUponEmail
Categories: ,

Product Description

TL-C12 SPECIFICATION:
Dimension:             L120 mm x W120 mm x H25 mm
Weight:                  135 g
Rated Speed:        1500 RPM±10% (MAX)
Noise Level:          25.6 dBA (MAX)
Air  Flow:               66.17 CFM (MAX)
Air Pressure:         1.53mm H2O (MAX)
Ampere:                0.20 A
Connector:            4 PIN PWM
Bearing Type:       FDB Bearing

Click to download Installation Guide

Click to download Case Compatible List
