ULTRA style heatsink fin array, with copper base, elevates heatsink’s overall quality.
Large heatsink fin array, provides dissipating area of up to 150*125mm, make complete use of the airflow, with 140mm or 120mm fan.
With the max width of 55mm, tall memory spreaders are avoided.
Support Multiple-Platforms.
Includes one Thermalright TY-140 PWM fan, Ultra low noise at 21 dBA at max rpm (50cm testing distance)
Fan-clips are compatible with both 140mm and 120mm fan.
Intel: Socket LGA 775/1150/1151/1155/1156/1366/2011/2011-3
AMD: Socket AM2/AM2 /AM3/AM3 /FM1/FM2/FM /FM2
Heatsink Specifications:

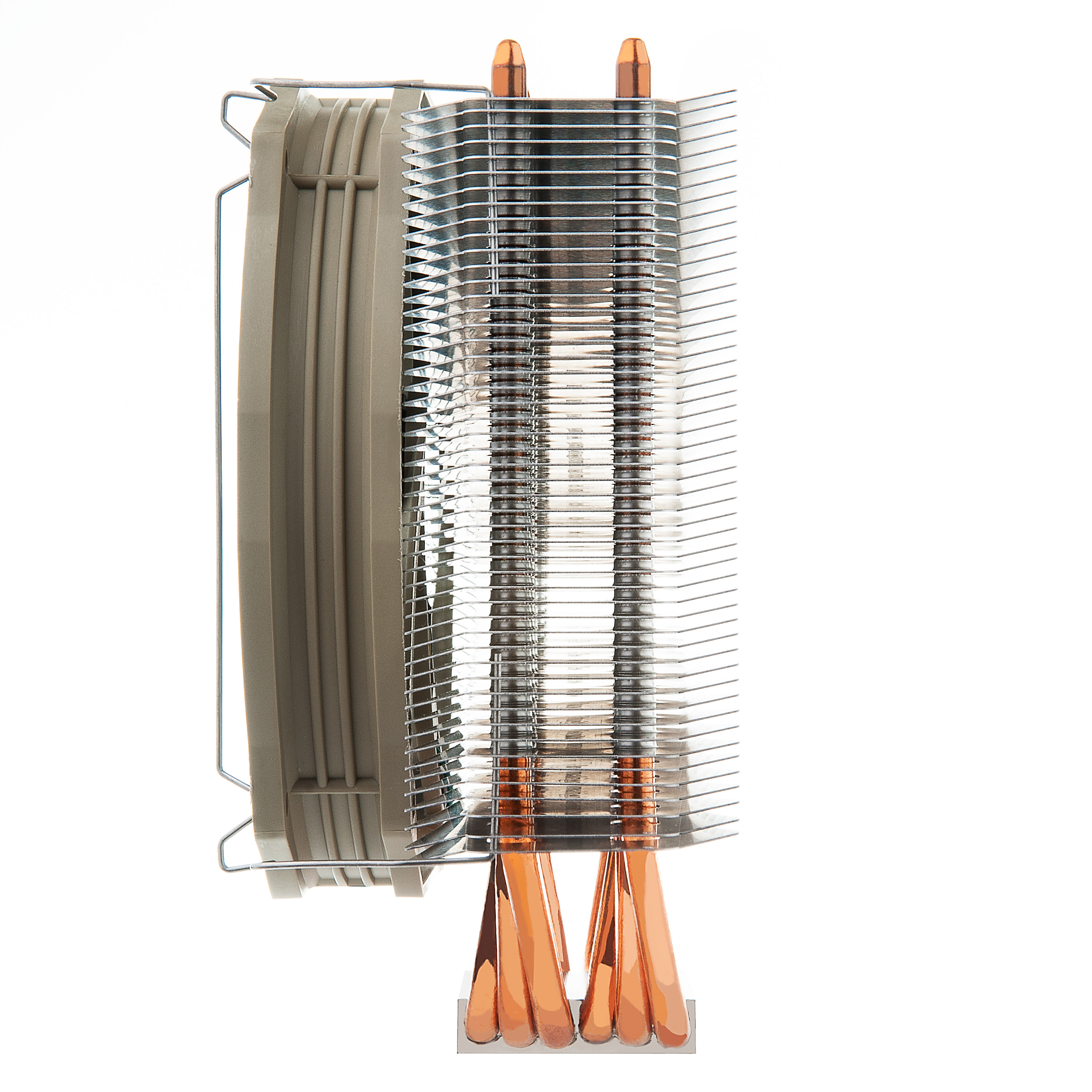

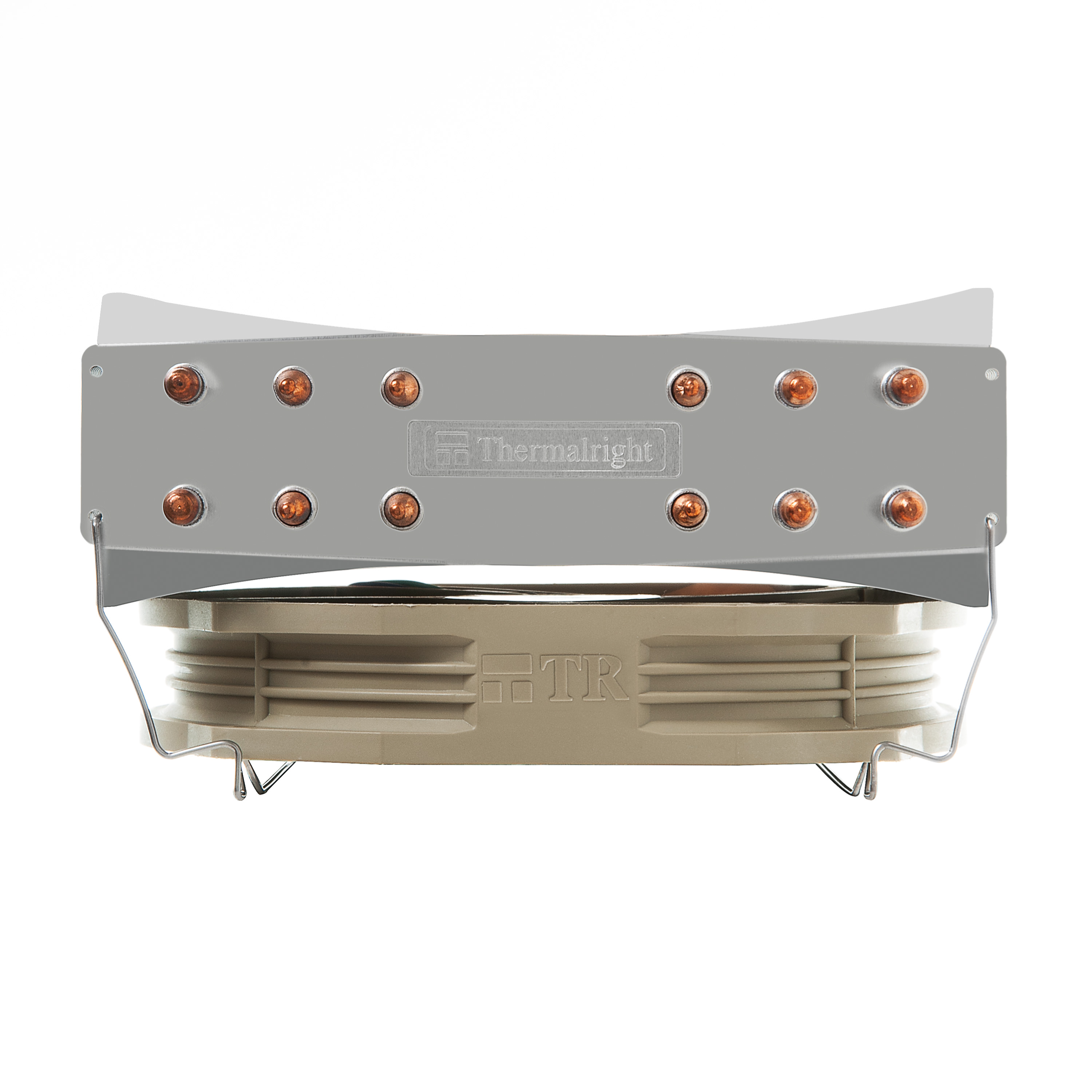

Dimension: L155 mm x W53.4 mm x H170 mm
Weight: 605g

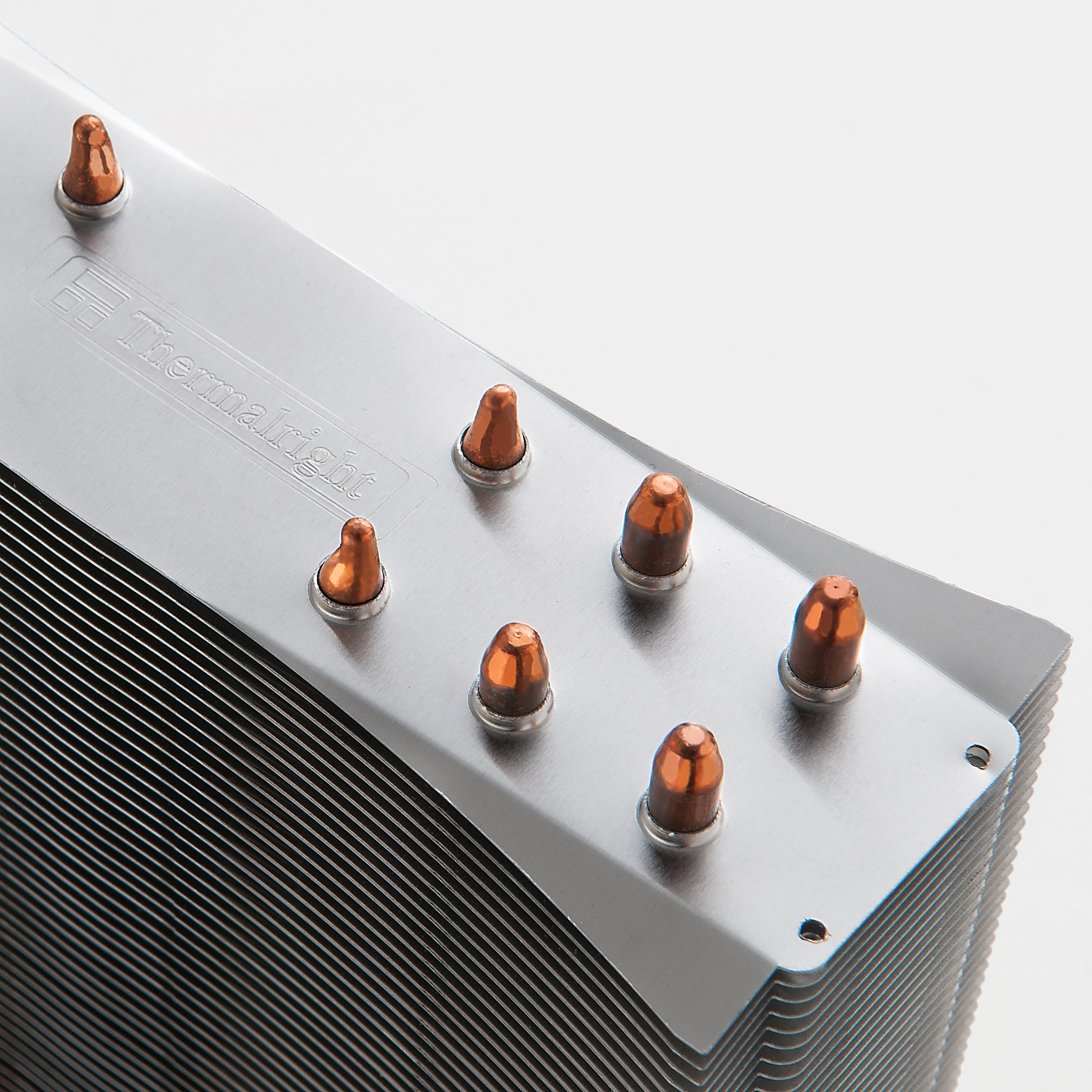

Heat pipes: 6mm heatpipe x 6 units
Fin: T = 0.4 mm ; Gap = 2.0 mm
Fin Pcs: 44 6 = 50 pcs

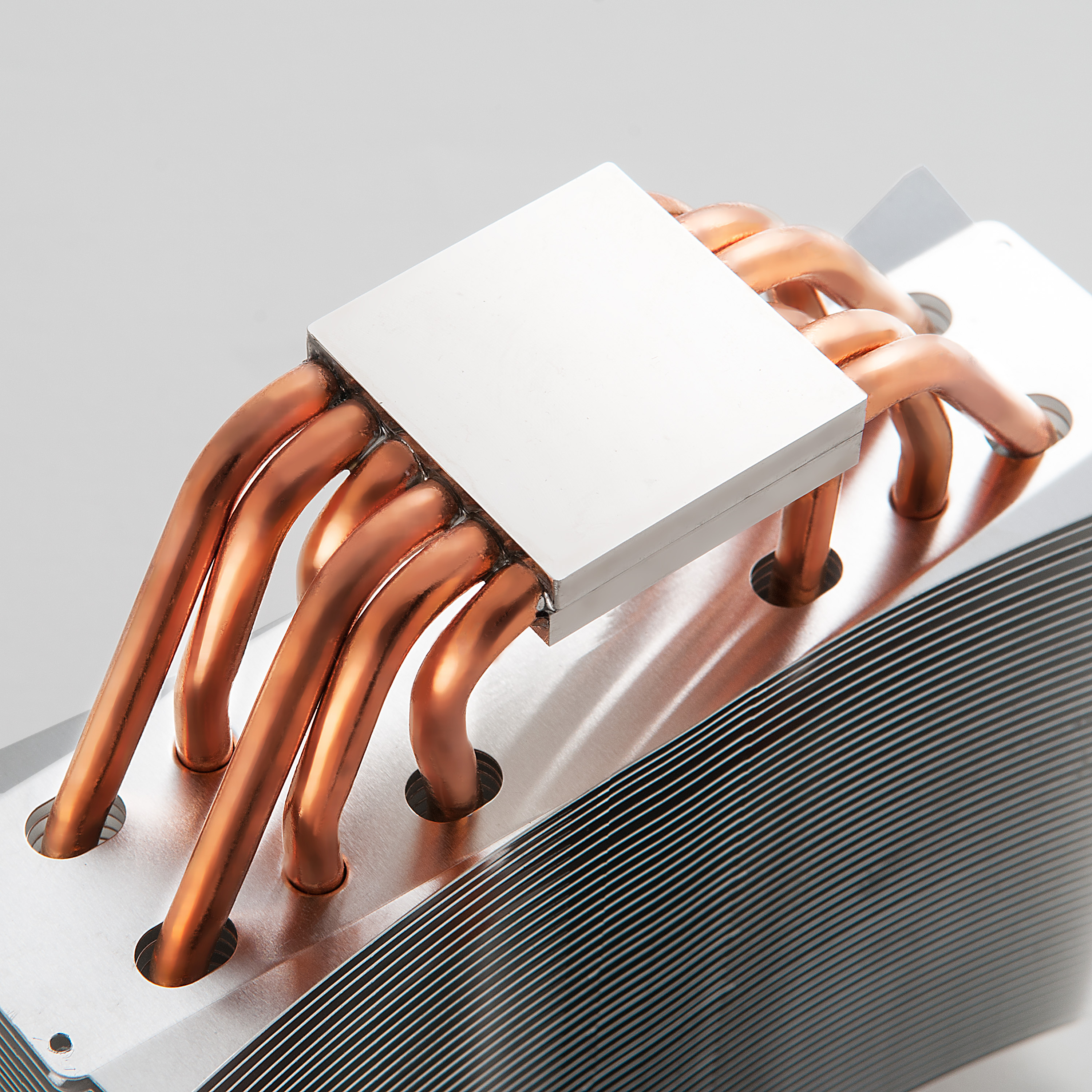

Copper Base: C1100 Pure copper nickel plated
Motherboard to Fin: 39 8 = 47 mm
TY-140 FAN Spec:
Dimension: L152 mm x W140 mm x H26.5 mm
Weight: 160g
Rated Speed: 900 – 1300 RPM
Noise Level: 17 – 21dBA
Air Flow: 28.3 – 73.6 CFM
Connector: 4 Pin (PWM Fan connector) Click to enlarge
 |
 |
 |
 |
 |
 |
 |
||||||
