Description
Specification:

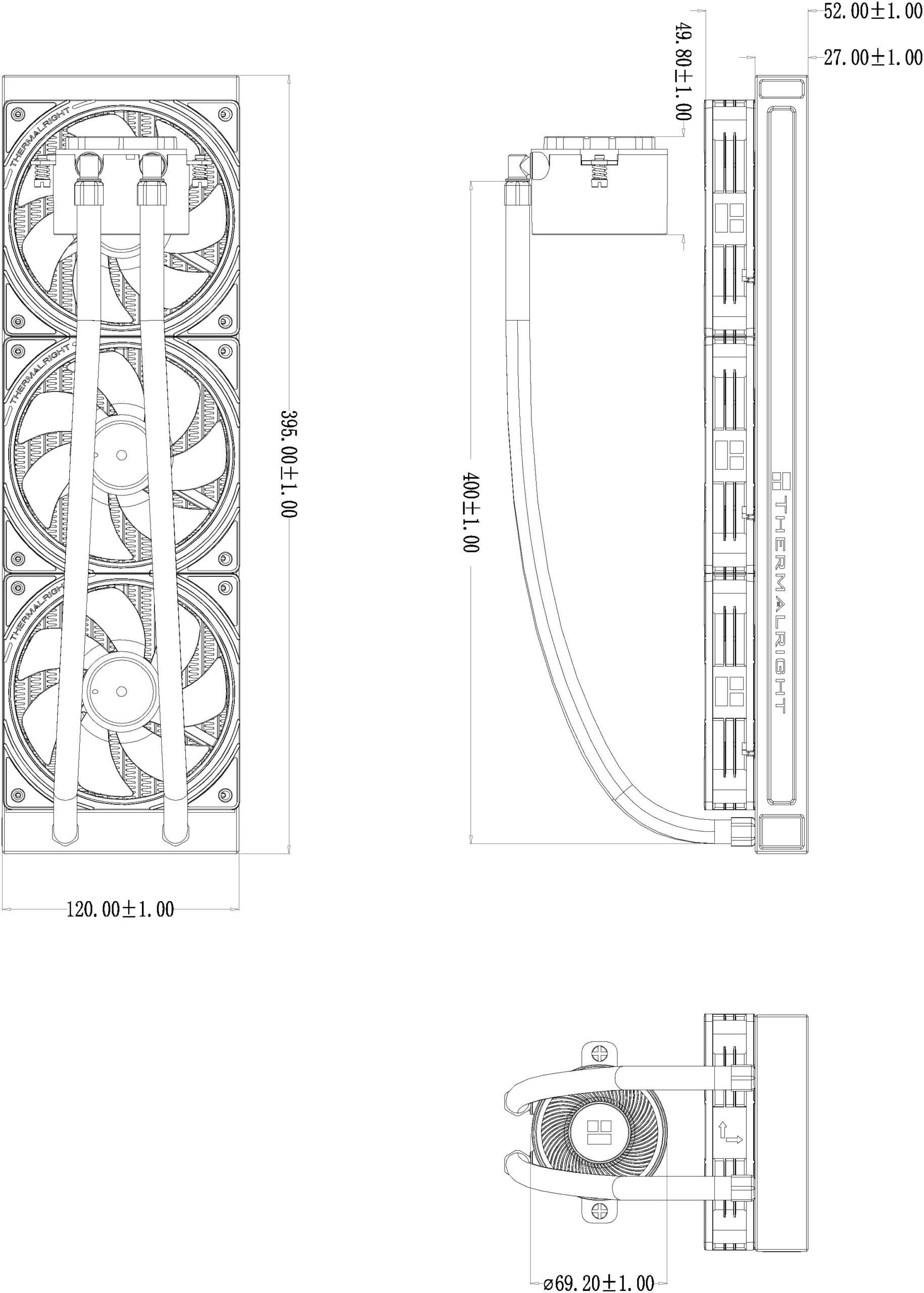

Pump Dimensions：W69.2 mm x D69.2 mm x H49.8 mm
Radiator Dimensions：L397 mm x W120 mm x H27 mm
Pump Rated Speed：2800 RPM±10% (MAX)
Pump Rated Voltage：12V DC
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Radiator：Aluminum
Pump MTTF：40000 Hours
Warranty：3 Years
TL-S12-W SPECIFICATION：
Dimension：L120 mm x W120 mm x H25 mm
Rated Speed：2000 RPM±10% (MAX)
Noise Level：28.2 dBA (MAX)
Air Flow：68.9 CFM (MAX)
Air Pressure：2.21 mm H2O (MAX)
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Bearing Type：S-FDB Bearing
