Description

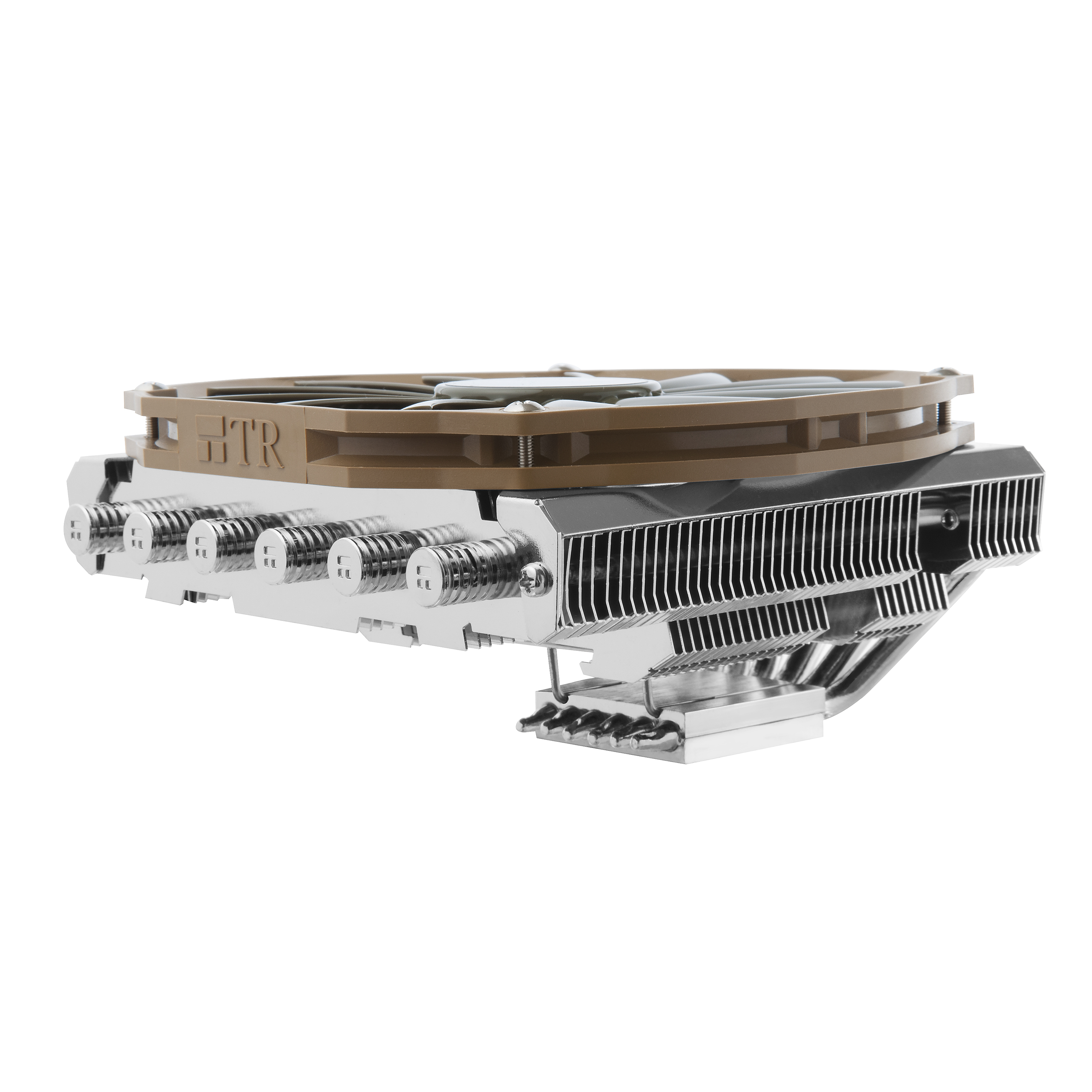

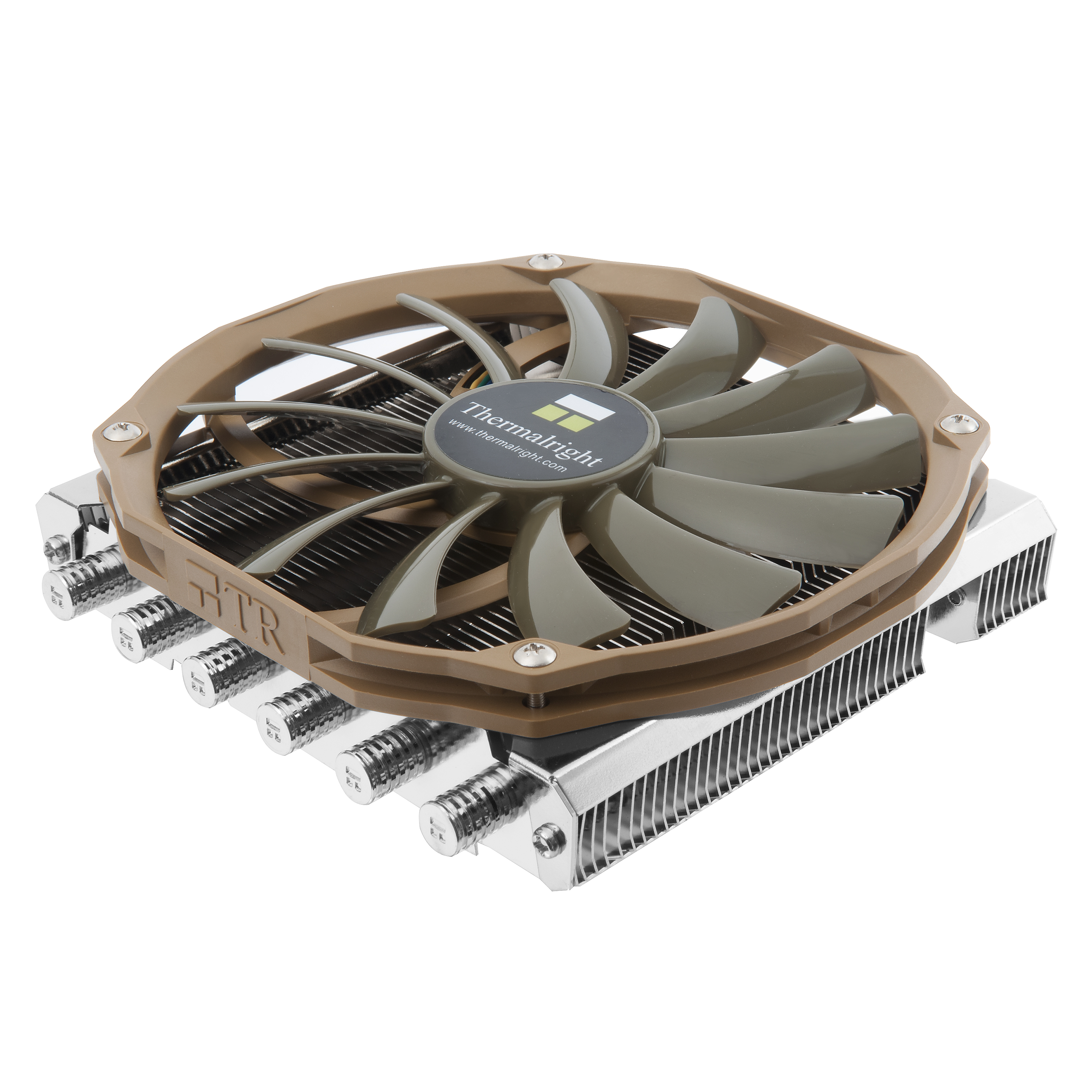

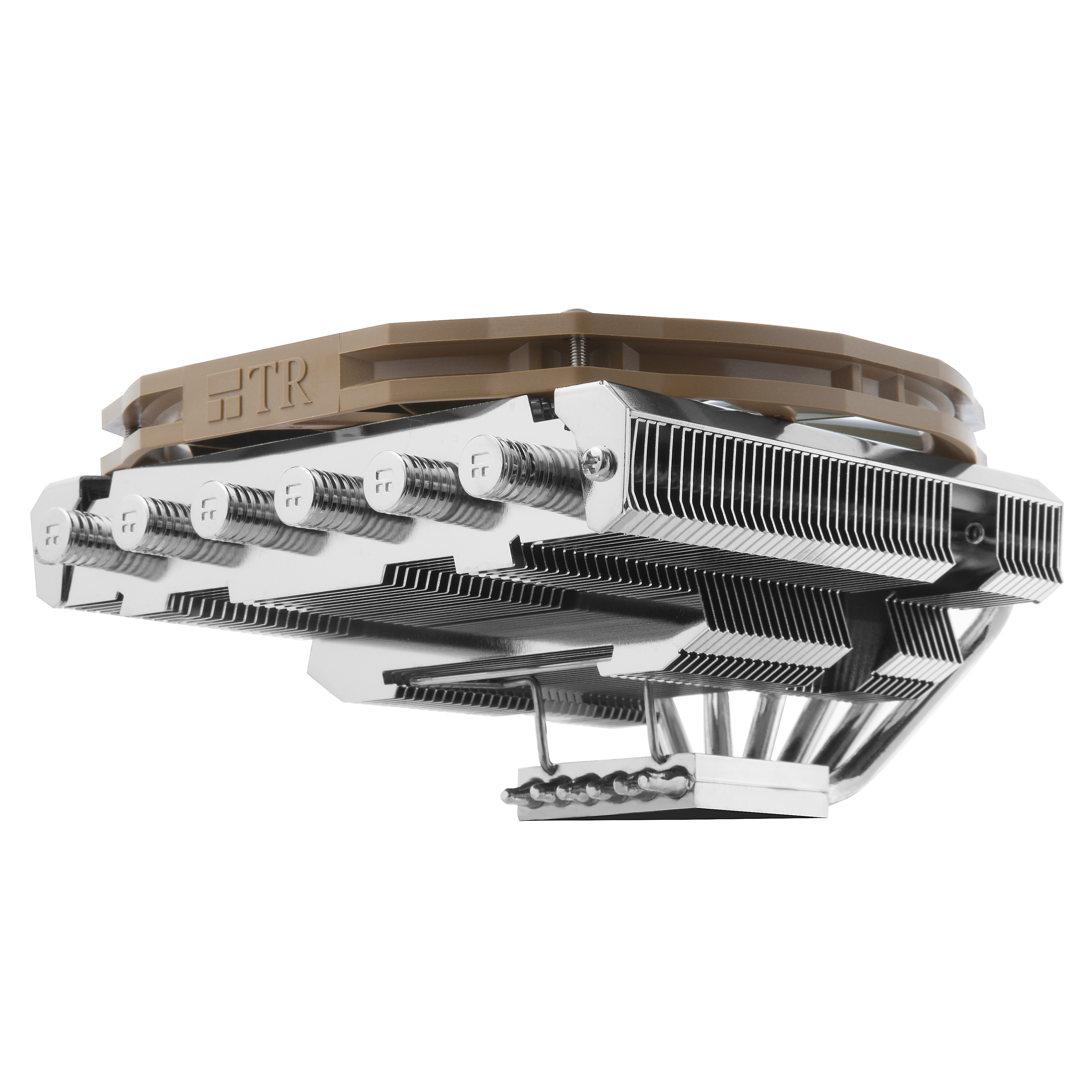

| Features: Designed for low profile desktop systems.Greatly enhanced airflow and surface for heat dissipitation.Total height of 73mm(2.87 inches) including the TY-14013 fan.Adjustable Fan Mount is capable of mounting 140mm fans and Thermalright 150mm fan.Full nickel plating of the six heatpipes and heatsink body ensures optimal anti-oxidization.Supports all modern CPU sockets and platforms. |
 |
Heatsink Specifications:

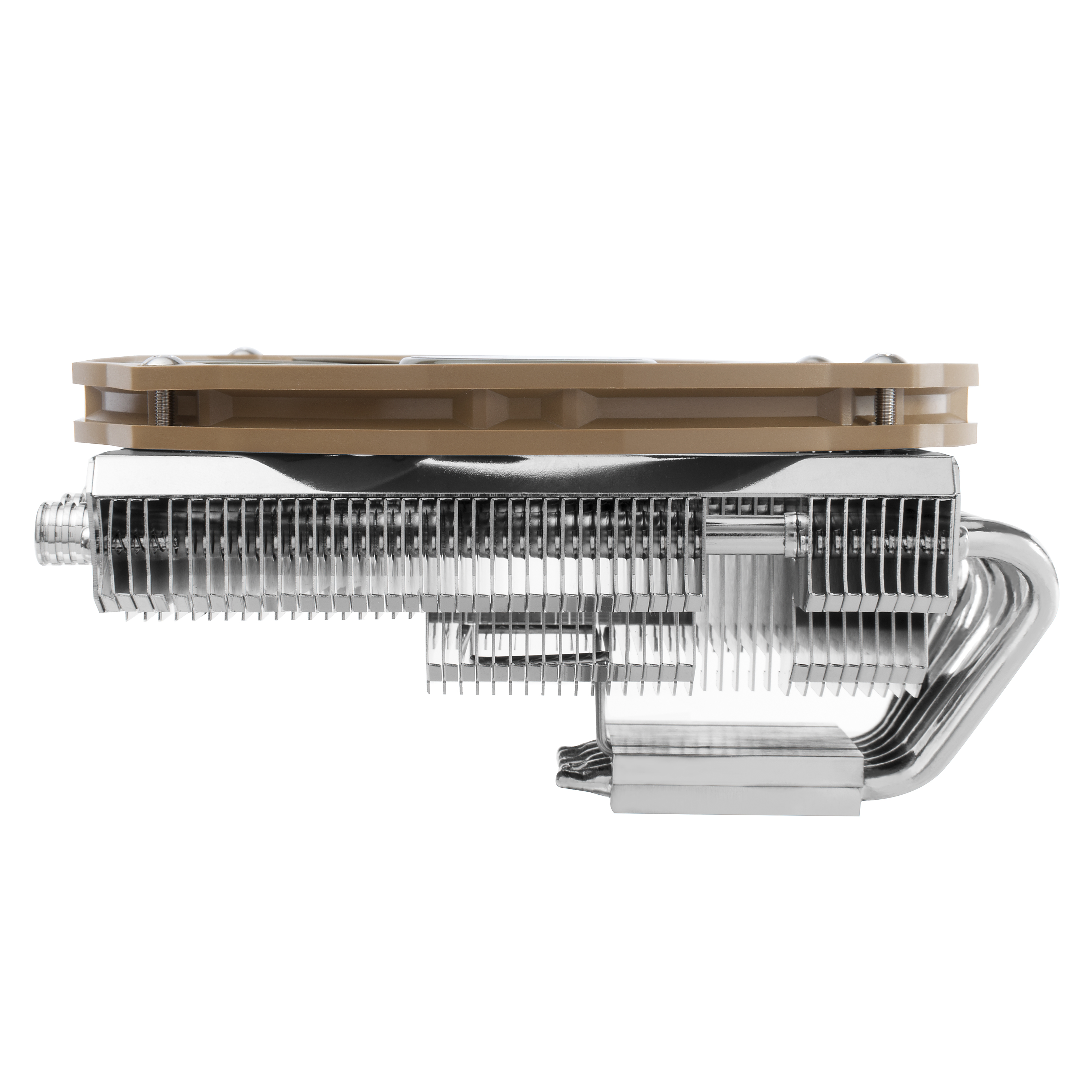

Dimension: L153 mm x W140 mm x H60 mm
Weight: 475g

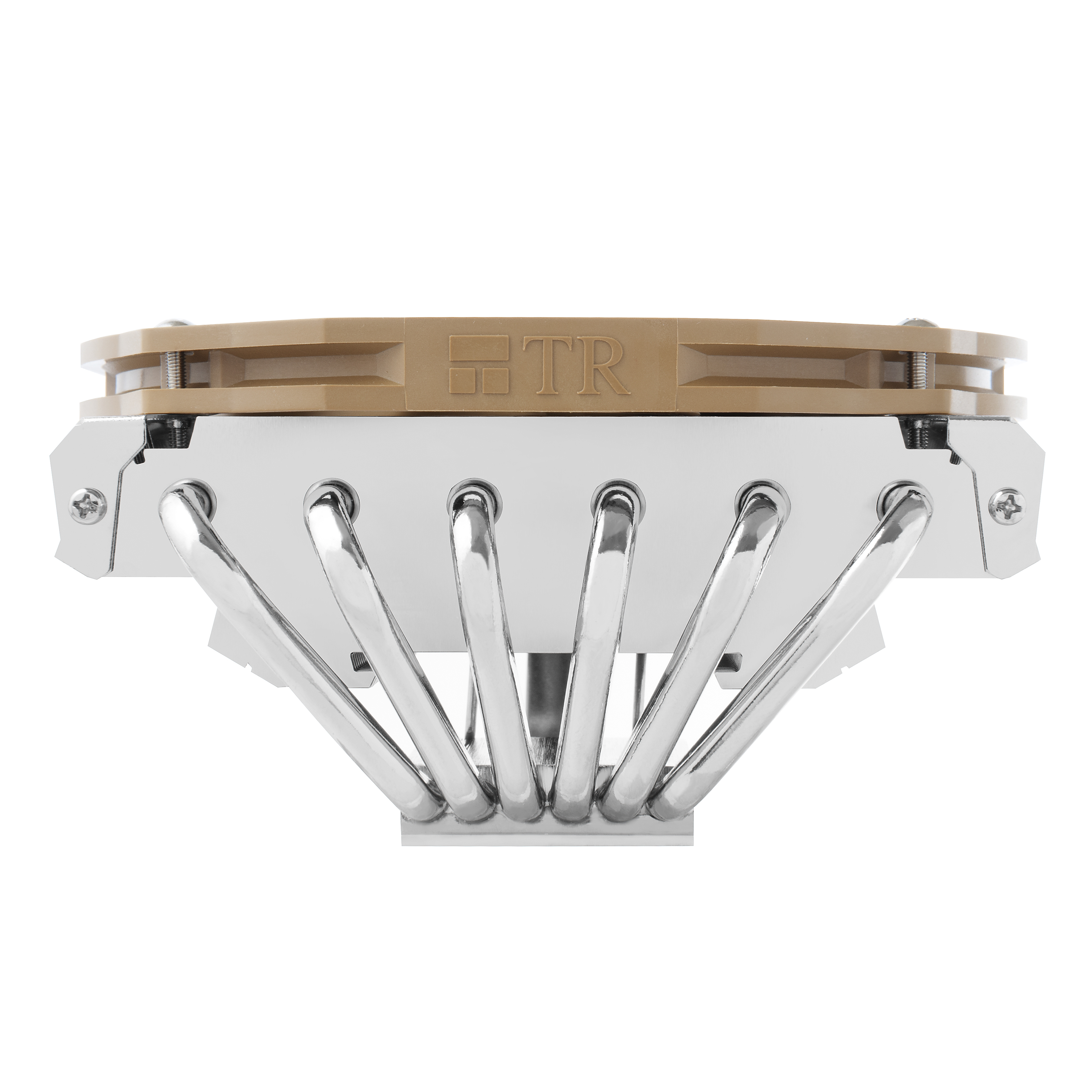

Heat pipes: 6mm heatpipe x 6 units
Fin: T = 0.5 mm ; Gap = 2.0 mm
Fin Pcs: 1 17 17 5 9 = 49 pcs

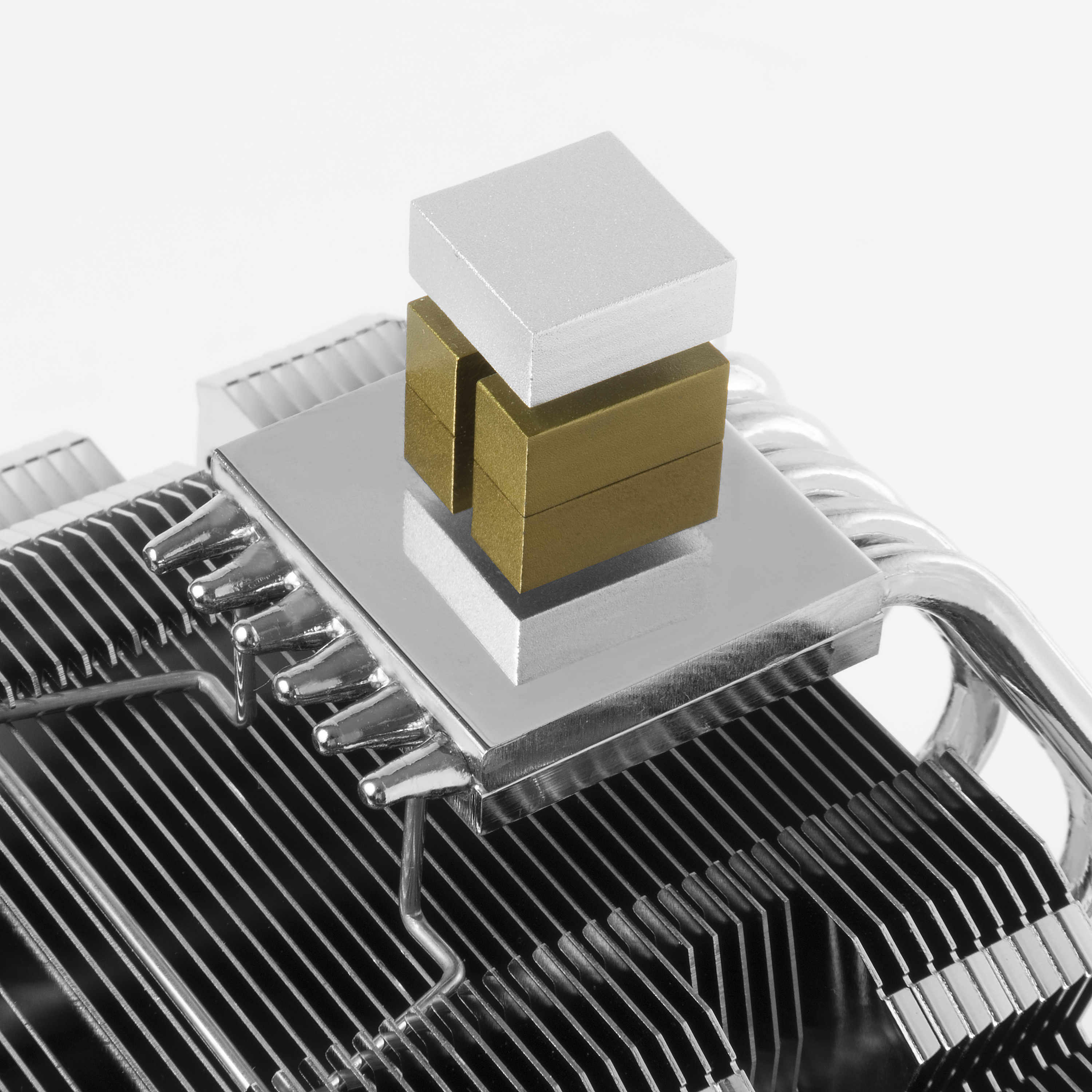

Copper Base: C1100 Pure copper nickel plated
Motherboard to Fin: 22 8 = 30 mm & 34 8=42mm

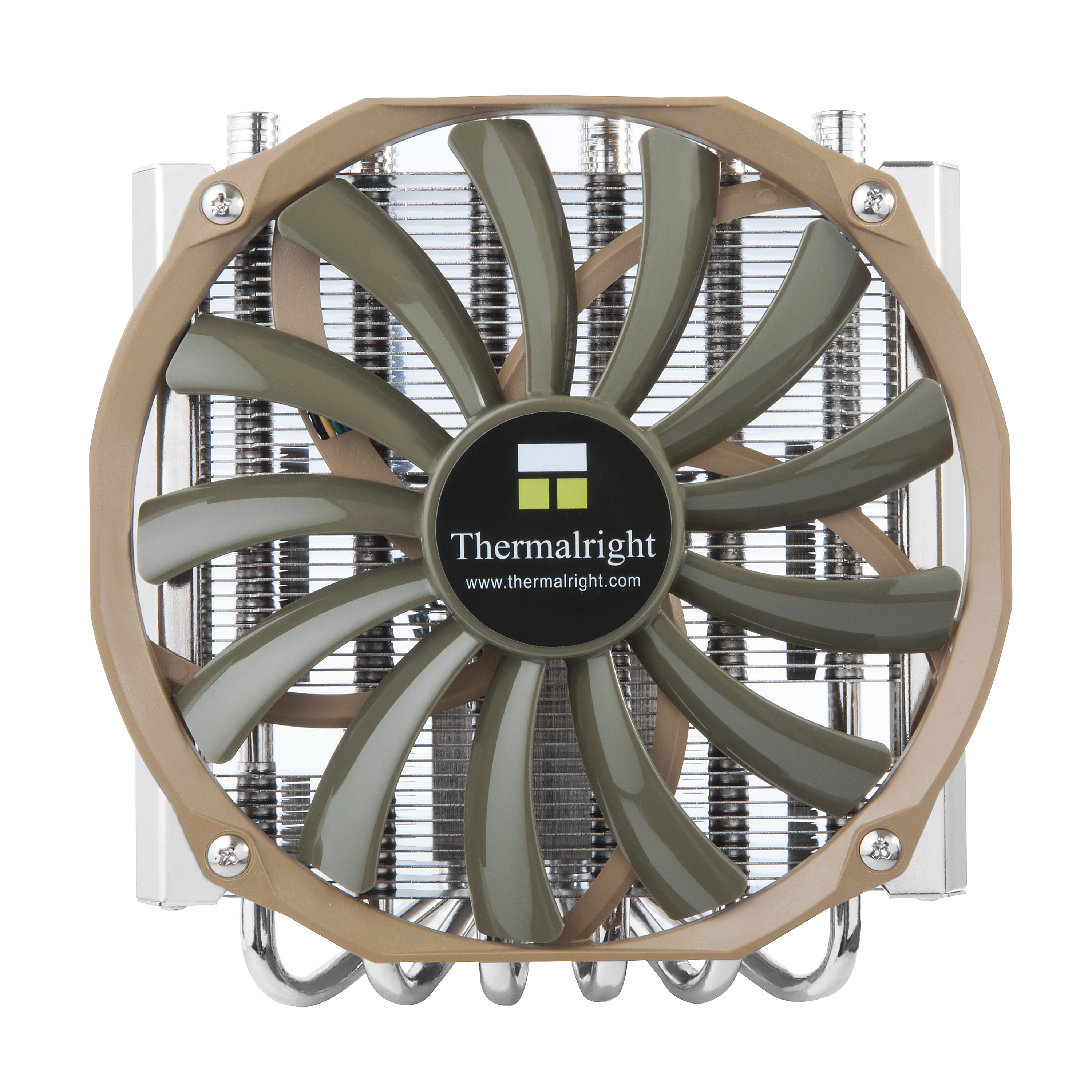

TY-14013 FAN Spec
Dimension: L150 mm x W140 mm x H13 mm
Weight: 90g
Rated Speed: 700~1300RPM±15%
Noise Level: 30.6dBA(Max.)
Air Flow: 64.52CFM
| CPU Socket Compatibility Intel: Socket LGA 775/1150/1151/1155/1156/1366/2011/2011-3 AMD: Socket AM2/AM2 /AM3/AM3 /FM1/FM2/FM2 |
|
Motherboard Form Factor Compatibility ATX, Enhanced ATX, Micro-ATX Most ATX and mATX motherboards are compatible (we haven’t found one that is not compatible) Mini-ITX Check socket 1150 motherboard compatibility list below: |
| Socket Type 1150 | ||
| Manufacturer | Model No. | Show me photos |
| Asus ROG Asus Asus Asus Gigabyte Gigabyte MSI MSI MSI MSI Asrock Asrock Asrock |
Maximus VI Impact H87I-PLUS H81I Z87I-DELUXE GA-H87N-WIFI GA-H87N Z87I H87I B85I H81 H87E-ITX H87M-ITX H81M-ITX |
VGA, RAM, Case** VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case** VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case VGA, RAM, Case |
** Where a problem does arise is with some mini-ITX motherboards. The APX-200 will extend outside the
motherboard past the memory slots (the I/O gasket is located directly opposite the memory slots).For this type of mini-ITX motherboard a case that would handle a high-end long video card would also
be appropriate for the APX-200.
motherboard past the memory slots (the I/O gasket is located directly opposite the memory slots).For this type of mini-ITX motherboard a case that would handle a high-end long video card would also
be appropriate for the APX-200.
Before September 15th, end users who submit their photos with cases not listed here will get a free TY-14013 fan from Thermalright.
For manufacturers of mini-ITX cases who want to submit cases to be listed here, please
contact Chris Lee at chrislee@thermalright.com
contact Chris Lee at chrislee@thermalright.com
Click to download Installation Guide
Click to download Product Images
