Description
Technical Spec :
Heatsink Specifications:
Dimension：L140 mm x W132 mm x H158 mm

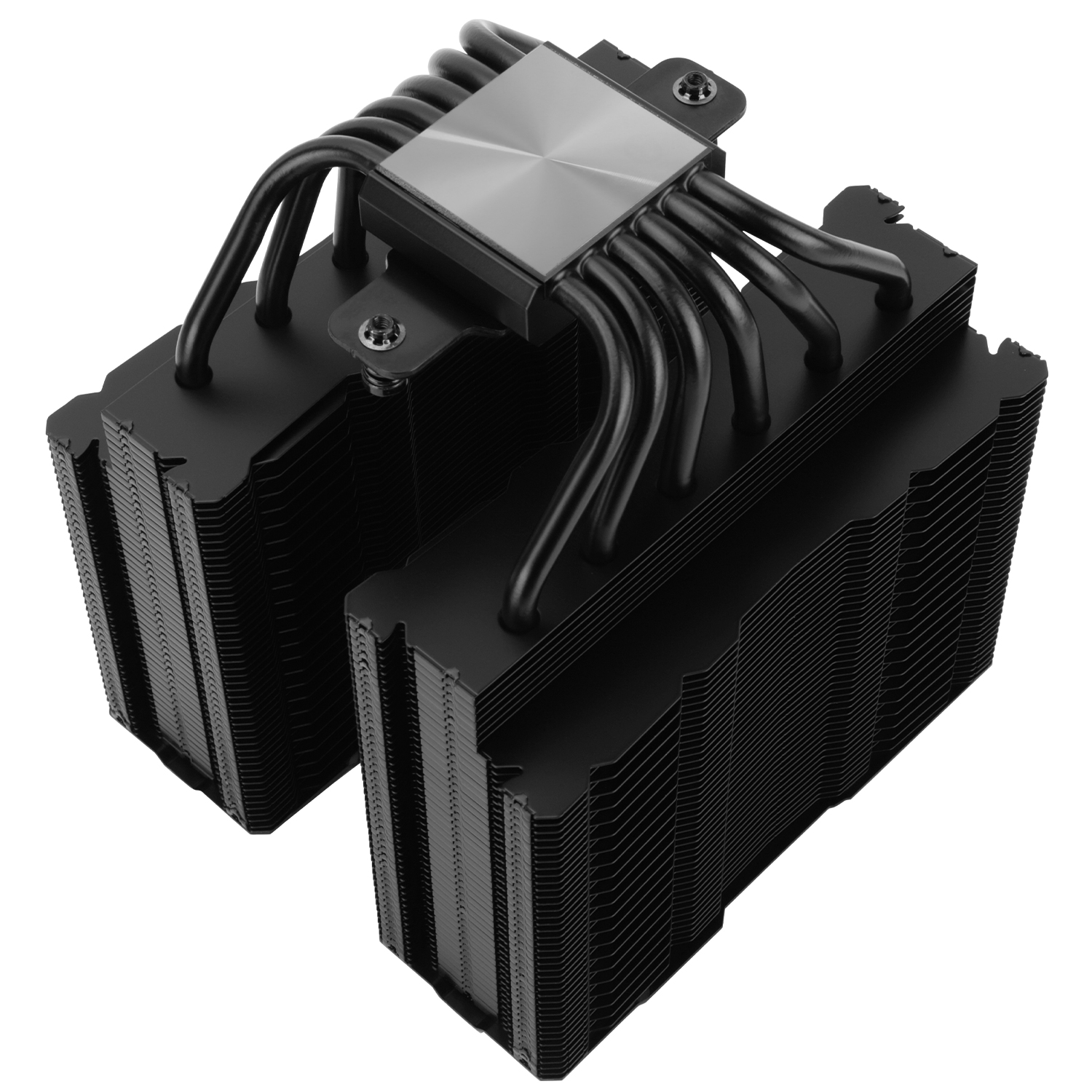

Heat pipes：6mm heatpipe x 6 units
Copper Base：C1100 Pure copper nickel plated
TL-C12B V2 FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Rated Speed：1500 RPM±10% (MAX)
Noise Level：25.6 dBA
Air Flow：66.17 CFM (MAX)
Air Pressure：1.53 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
TL-D14CB FAN Spec：
Dimension：L140 mm x W140 mm x H27 mm
Rated Speed：1500 RPM±10% (MAX)
Noise Level：25.6 dBA
Air Flow：77.8 CFM (MAX)
Air Pressure：2.09 mm H2O (MAX)
Connector：4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
Click to download Installation Guide
Click to download Product Images
