In 2012, with the introduction of low wattage CPU’s also the change in the mainstream preferences towards smaller and minimalistic PC cases, we at Thermalright have also adjusted our lineup. Traditional 160mm tower coolers may now have compatibility issues with mainstream cases. This is why we’ve designed the world’s smallest 120mm fan based cooler, the TRUE Spirit 120M(BW)! Built on the basis of Thermalright’s successful TRUE Spirit 120M, the TRUE Spirit 120M(BW).

Built on the basis of Thermalright’s successful TRUE Spirit 120M, the TRUE Spirit 120M(BW) is Thermalright advancement towards Silence, Performance and Compatibility. Made specifically for Micro ATX users, the total height is only 145mm, almost 16% lower than the 160mm Tower standards that Thermalright has set years ago. Along with a full sized 120mm fan, the TRUE Spirit 120M(BW) is the best companion for your slim case.

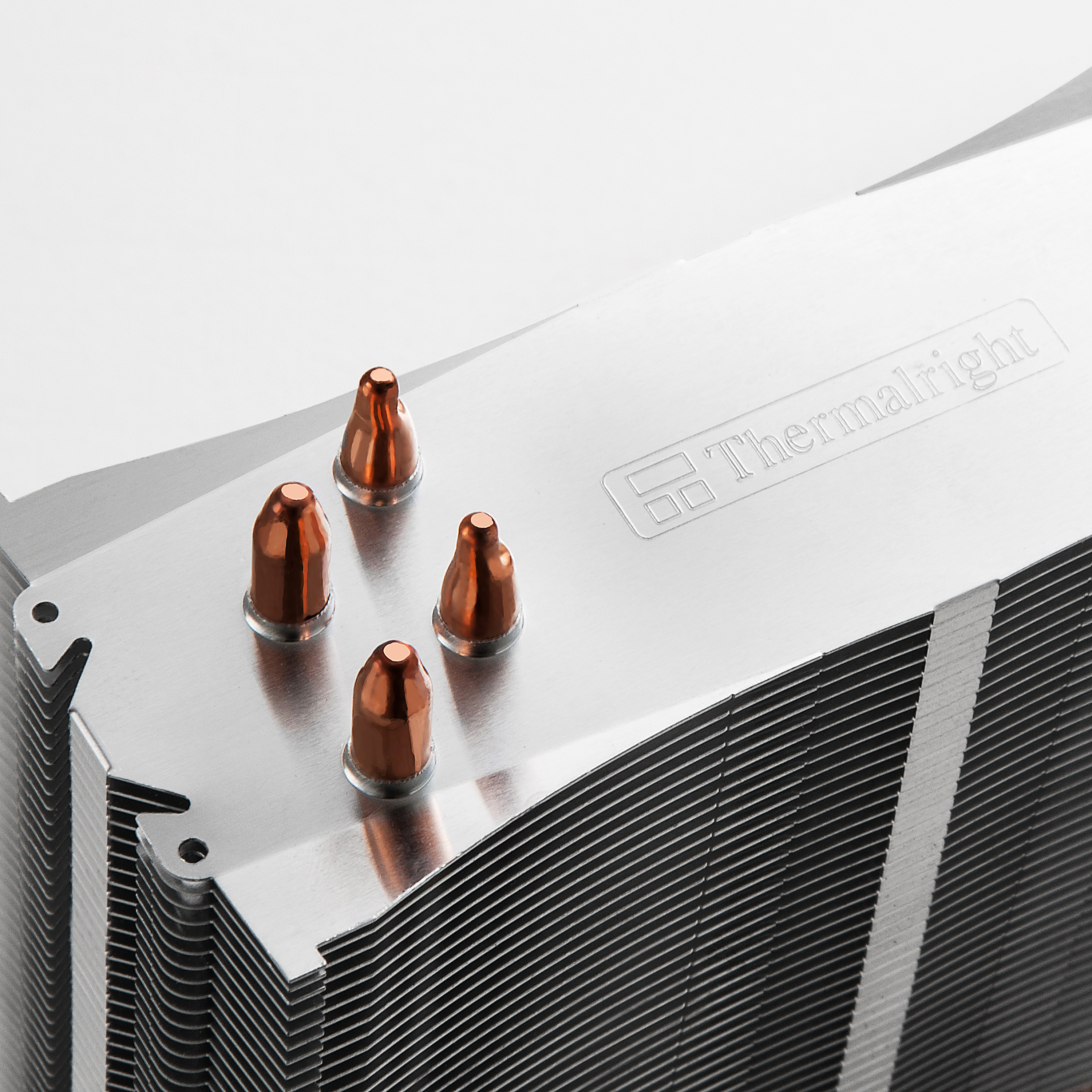

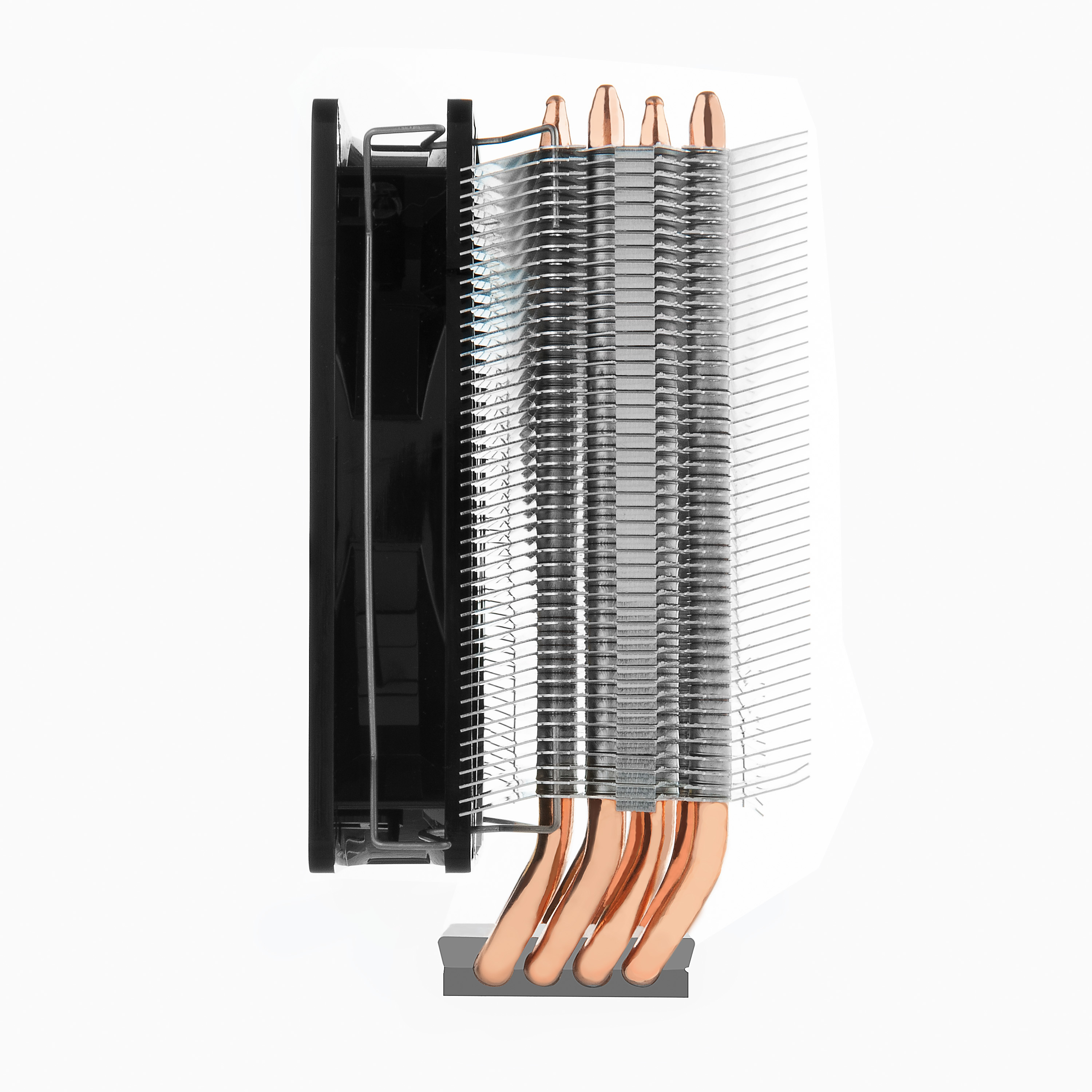

By fine tuning the four high quality copper heatpipes, engineered to be slanted toward the back of the cooler, Thermalright has managed to keep the same heat
dissipation surface area and 120mm fan. The beauty of the new heatpipe design is that it effectively eliminates all RAM interference issues.
The TRUE Spirit 120M(BW) allows Micro ATX and slim case user to be free from mediocre coolers, opening the door for extreme overclocking and high-end RAM.

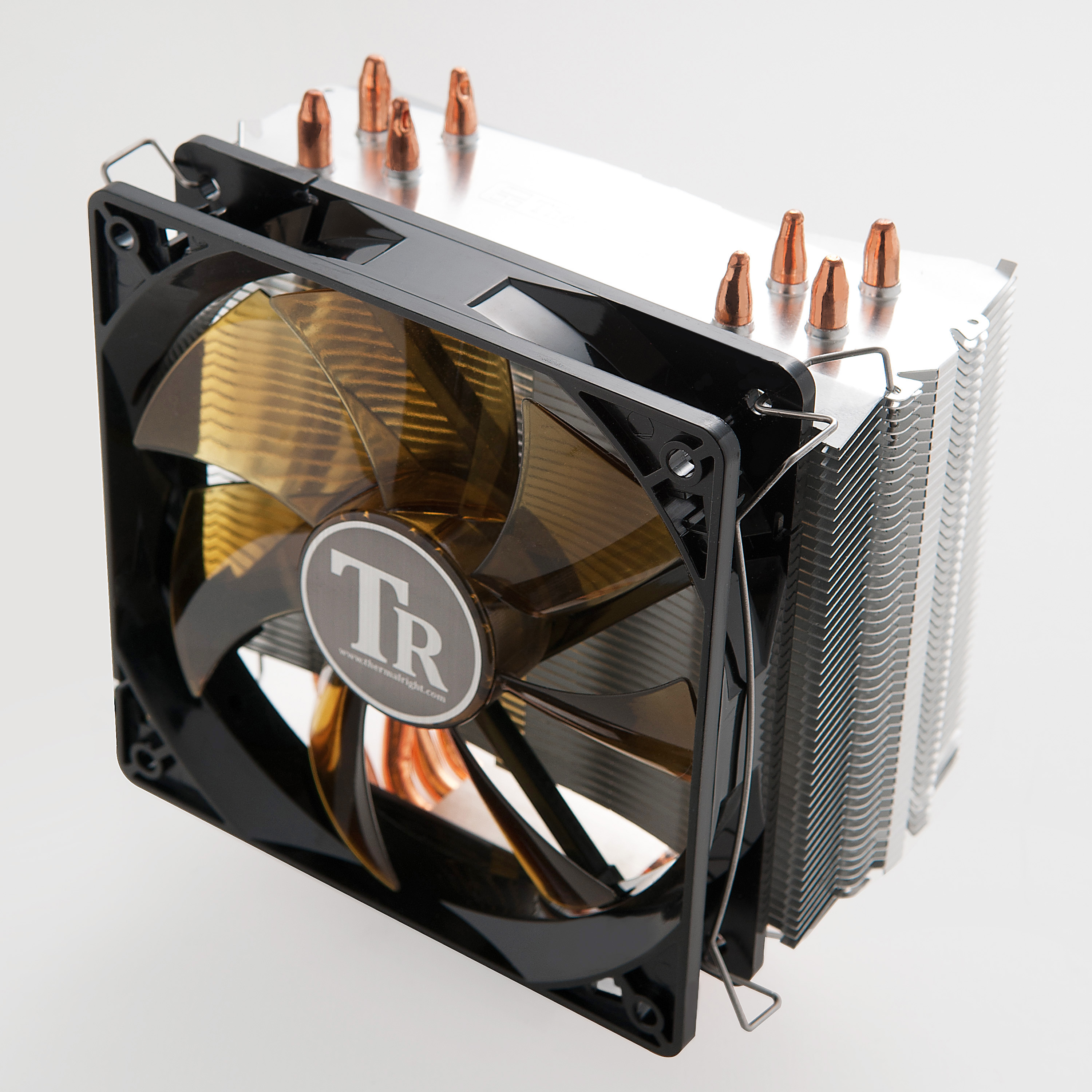

The TRUE Spirit 120M(BW)’s 120mm PWM fan lets users strike a perfect combination of airflow and silence. Universally compatible with all modern sockets on the market
(Intel LGA 2011/115x/1366/775 and AMD AM2/AM2 /AM3/AM3 /FM1/FM2/FM2 ) It fits almost any case and any board, the TRUE Spirit120M(BW) is the full package, at a budget price point!.

Heatsink Specifications:
Dimension: L132 mm x W57 mm x H145 mm
Weight: 470g
Heat pipes: 6mm heatpipe x 4 units
Fin: T = 0.4 mm ; Gap = 1.8 mm
Fin Pcs: 46 pcs

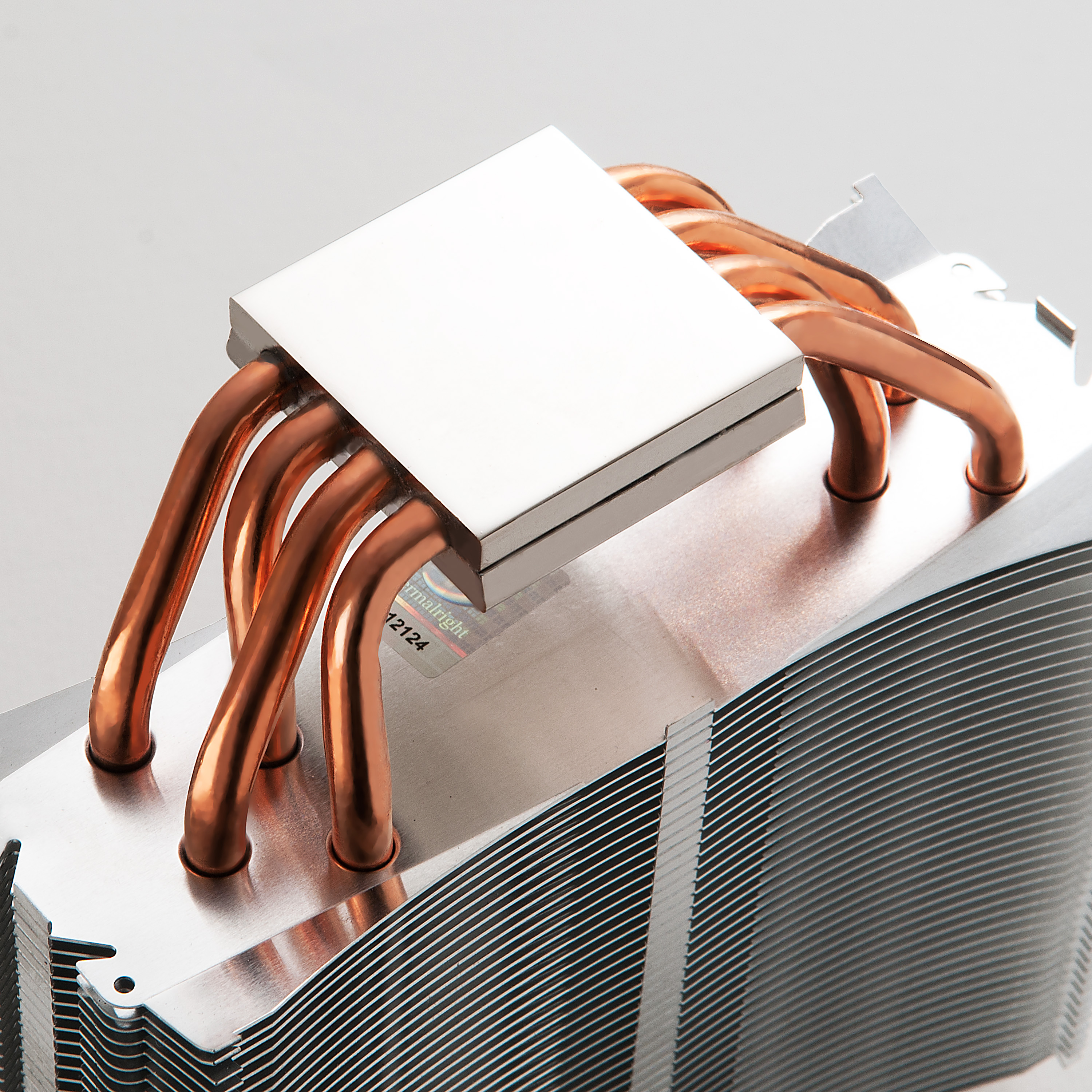

Copper Base: C1100 Pure copper nickel plated
Motherboard to Fin: 30 8 = 38 mm

TR-12025-BW FAN Spec
Dimension: L120 mm x W120 mm x H25 mm
Weight: 145g
Rated Speed: 600 – 1300 RPM
Noise Level: 24.5dBA
Air Flow: 24.8 – 56.2 CFM
Connector: 4 Pin (PWM Fan connector)

FAQ 1

Question :The TS120M (BW) fits into small tower cases, but how do I tell if it can fit my case?

Answer :
The TS120M(BW) does in fact fit into 90% of tower cases in the market.
There is a quick way to identify if the TS120M(BW) fits your case.
If the system fan at the rear of your case is at least 8cm then the TS120M(BW) will fit you.
